Duplex 2205 and 254 SMO Tube Fittings in Process Industries Alva

Alloy tubing assemblies for instrumentation operation in desalination plants, petrochemical refineries, and offshore control may often be made from the alloys which are capable of withstanding chloride stress corrosion, pressure cycling, mechanical vibration, etc. In fact, many engineers who design analyzer panels and hydraulic impulse lines prefer Duplex 2205 Instrumentation Tube Fittings because the alloy offers a balanced microstructure of austenite and ferrite, which not only leads to a higher yield strength but also makes it more resistant to pitting as compared to traditional austenitic stainless steels. Most of the times, the material corresponds to the UNS S32205 or S31803 grades and is generally produced in accordance with ASTM A182 or ASTM A479 forging standards.

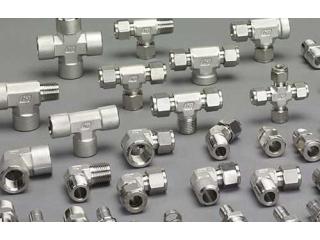

Usually, these fittings are made in double ferrule compression designs that are intended for leak-tight operation in process instrumentation networks. Some of the common product types are unions, tees, elbows, bulkhead connectors, reducers, tube caps, and adapters made for tubing diameters from 1/16 inch to 2 inches. Pressure ratings can be more than 6000 psi depending on the tubing wall thickness and temperature of operation. Often, procurement engineers who are looking at project specifications also want the product to be passivated, hydrostatically pressure tested, and to come with traceable mill test reports that are in line with ASME B31.3 process piping standards. Besides, with the help of digital sourcing platforms like pipingmaterial.sa, buyers from industrial zones in Riyadh and Dammam very often search for verified suppliers that offer certified duplex compression fittings which can be used for refinery maintenance packages and offshore instrumentation skids.

If we talk about very aggressive chloride environments such as seawater injection modules and desalination brine systems, then at times even higher alloyed stainless steels are chosen for longer life of the service. Engineers working on such conditions generally order 254 SMO Instrumentation Tube Fittings made with a material of UNS S31254 which is enriched with molybdenum and nitrogen so that it may resist pitting better. Buyers of supporting projects in Jeddah also find verified suppliers and genuine distributors through pipingmaterial.sa.
