Engineering Insights on Copper Nickel 70/30 Flanges and EEMUA 145 Flange Standards Argos

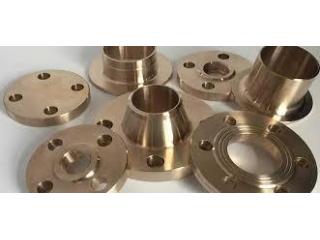

Copper Nickel 70/30 Flanges are the most preferred in offshore and marine piping systems because they have excellent resistance against seawater corrosion, biofouling, and stress cracking. Typically made to ASTM B151 and ASME B16.5 standard sizes these flanges are available in Class 150, 300, 600, and above pressure ratings, and the sizes range from ½" to 24". The 70/30 metal mix, which has about 70% copper and 30% nickel, imparts better mechanical strength than 90/10 grades and hence it can be used in desalination, heat exchangers, and firewater lines.

 In the main industrial centers of Dammam, Riyadh, and Jeddah, the specs for projects require the use of a raised face, ring type joint, or weld neck in seamless or forged constructions. EPC contractors review material traceability, PMI testing, hydrostatic inspection, and adherence to NACE MR0175 standards quite often. Through pipingmaterial.sa, an exclusive B2B portal, purchasers have the opportunity to select from pre-approved local and international suppliers who can provide mill test certificates and offer reasonable delivery times for these alloy flanges, thus securing authentic materials for both upstream and downstream projects. Besides, the design engineers also use the EEMUA 145 Flange manual as a reference when they verify the strength of joints in major diameter water systems.

 EEMUA 145 Flange recommendations, which are not a production standard, deal with the correct amount of bolt tension, gasket crushing, and the right way of putting the parts together so as to avoid leaks. The evaluation of the flange face texture, bolt insertion, and alignment tolerance is done together with the examination of ASME and EN codes, especially for those cases where seawater and cooling networks are considered to be very important. The country Saudi Arabia has been using these instructions on a regular basis for the power, petrochemical, and marine industries, thereby helping to keep the installations safe and efficient for many years to come.
